Introduction

The VL compressed air venturi loader series are simple, effective material conveying units using pressurized air (approximately 85 PSI) to create a vacuum for conveying plastic granules. The units are ideally suited for conveying raw material directly to the molding machine feed throat.

There are two models available:
-VL-50: conveys up to 88 lbs/hr (40 kg/hr).
-VL-100: conveys up to 132 lbs/hr (60 kg/hr).

Features

• Contamination-free stainless steel material hopper and base.
• Environmentally friendly air exhaust filter.
• High pressure air conveys material ensuring quiet operation.
• Capacity sensor mounted onto the glass tube for accurate level sensing.
• Compressed air filter and regulator eliminates moisture and maintains a steady air pressure.
• Easily access material hopper for convenient cleaning.
• Compact, light weight design ensures quick installation and easy operation.
• Adjustable hopper and base mounts.

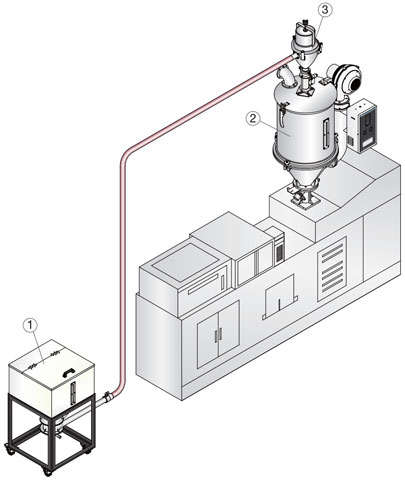

1. Material tank
2. Hopper dryer
3. Venturi loader

1. Material tank
2. Hopper dryer
3. Venturi loader
4. Single color feeder
